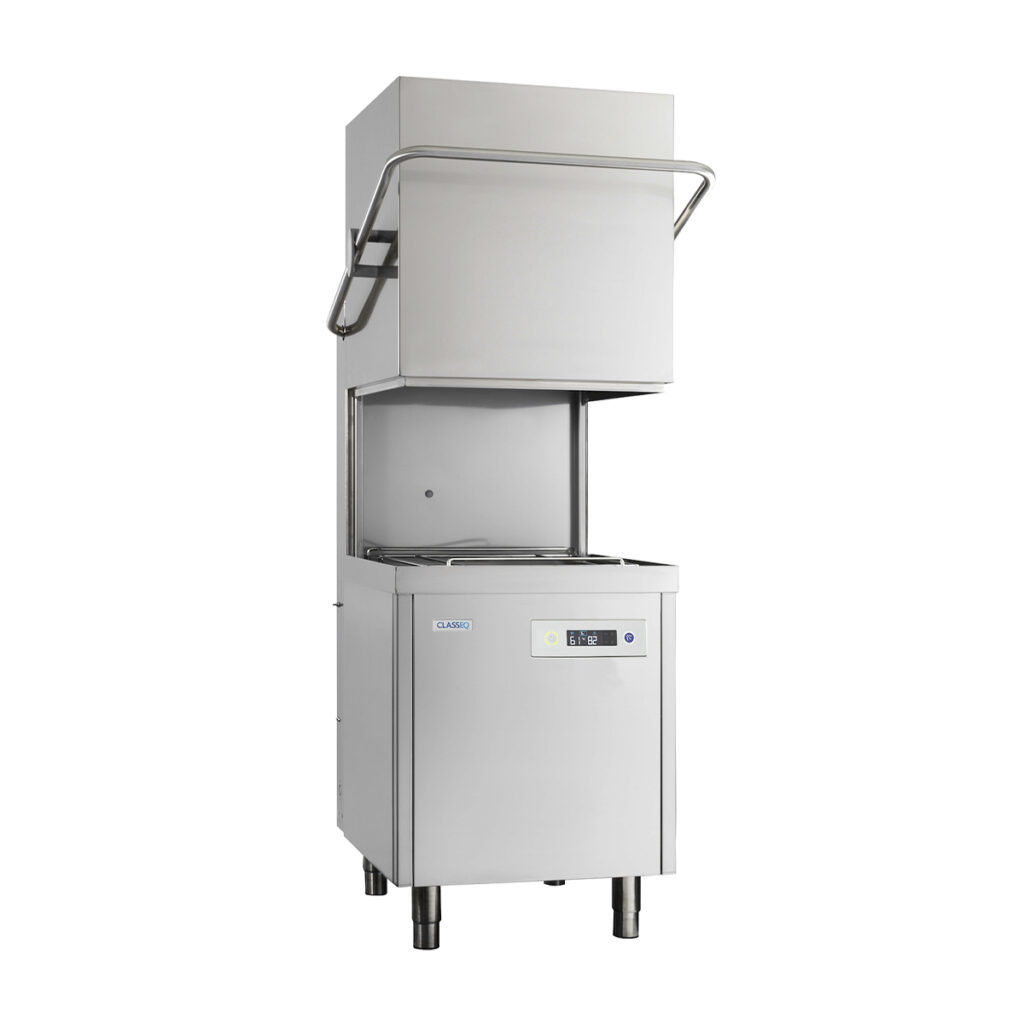

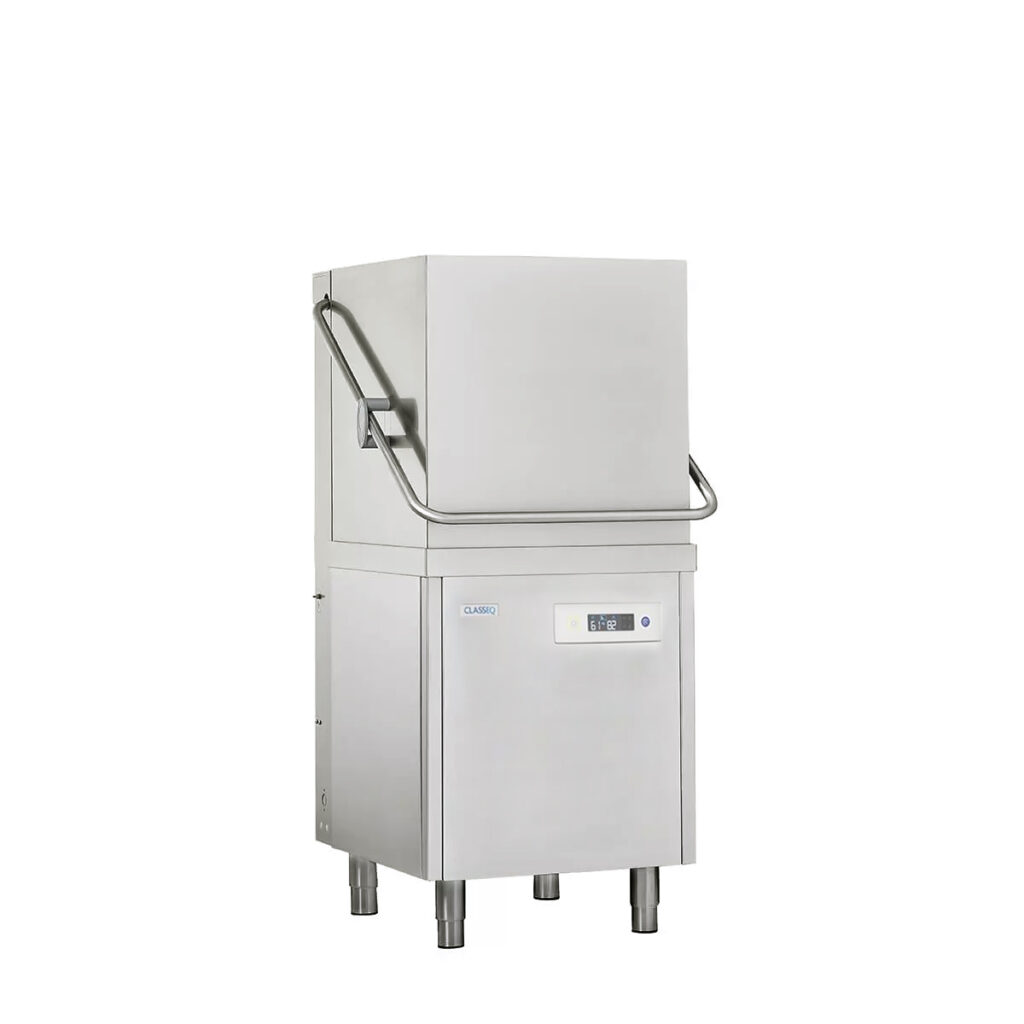

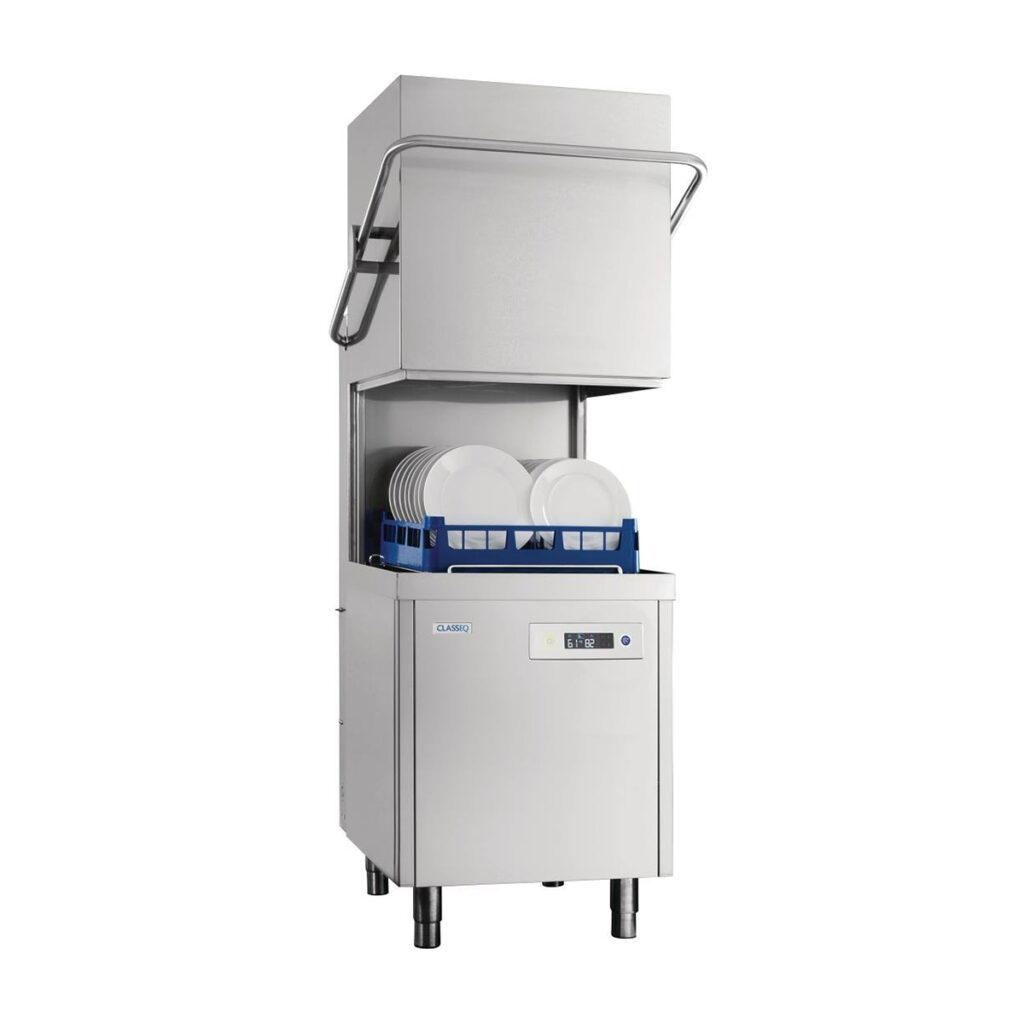

CLASSEQ PASSTHROUGH WASHER P500A
By Winterhalter

SKU: 902V0055 Category:

R74,113.00 (Excl VAT)

Retail prices excluding local 15% VAT

Product Description

The Classeq Passthrough Dishwasher range can accommodate a wide variety of industries and come complete with setup and a resource-saving dosing system. High volume digital dishwashers suitable for straight-through or corner situated operation, the P500A machines are capable of washing up to 720 plates per hour. The P500A has an effective water consumption reduction, offering only a 28 litre wash tank, ensuring a minimized running cost, with the same optimal cleaning result you would expect from larger machines. Easy cleaning ensures a reduced labour cost due to the continuous hood clean and removable front panel that allows excellent service access.

This P500A machine comes with the following configuration:

  • Boiler heating zero pressure 8,6 kW
  • With drain pump
  • Rinse aid dosing pump included
  • With Air Gap Rinse booster pump included
  • Display LCD premium – built in
  • Rack equipment Classeq 500 mm Open & Plate, 8 Sec. Cutlery
  • Three-phase current 380V-415V3N~; 50 Hz Fuse protection 17 Ampere

In the detail

  • LCD display – enhances user functionality by displaying rinse and wash tank temperatures.
  • Maximum clear entry height: 440 mm
  • Water inlet height floor level: 255-310mm
  • Drain height floor level: 0-700mm
  • Drain Size: 40mm Diameter
  • Basket Size: 500 x 500 mm

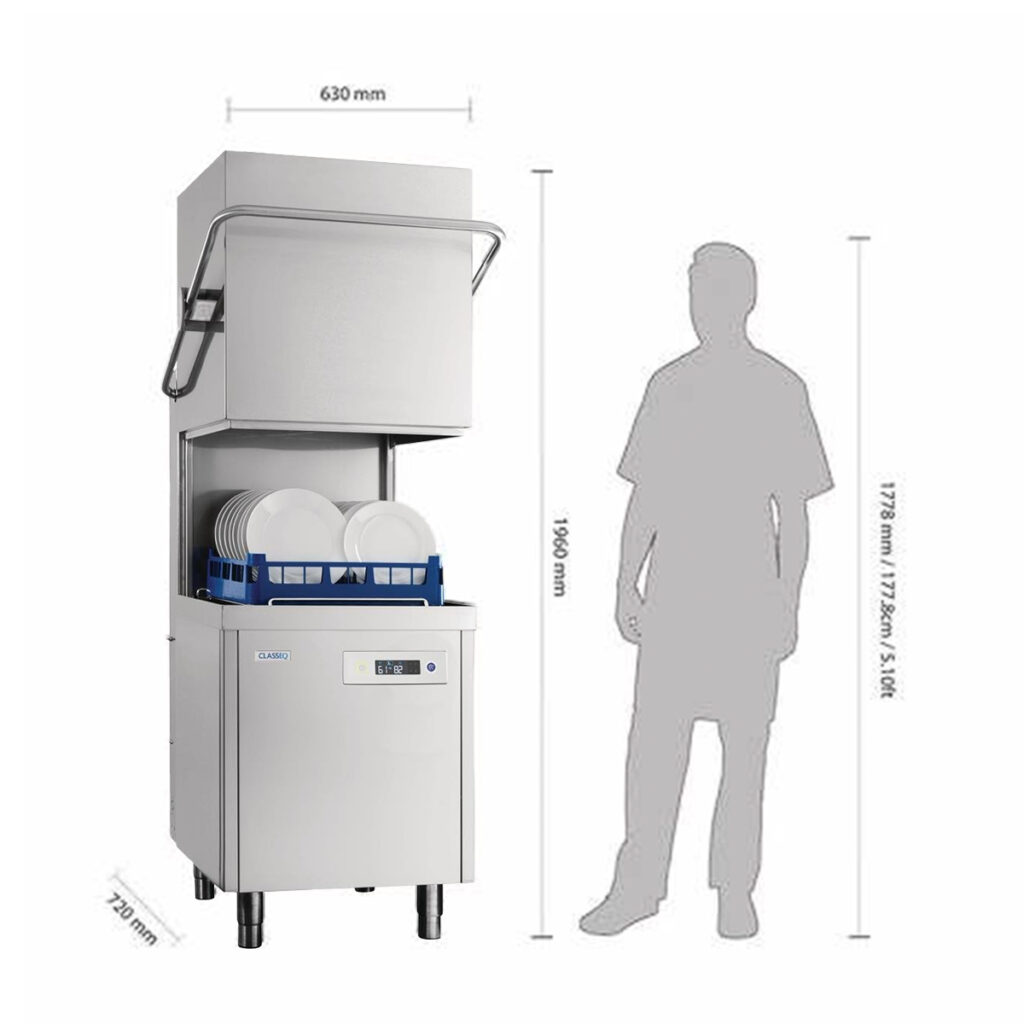

  • Dimensions: 635(W) x 712(D) x 1460(H) mm (2010mm max)
  • Height – Hood Open: 1955-2010mm
  • Height – Hood Closed: 1460-1515mm

Performance

  • Theoretical max racks per hour: 40
  • Plates per rack: 18
  • Number of wash programmes: 3
  • Duration of wash programmes: 1.5, 3 & 5 minutes
  • Noise level: < 70 dB
  • Net weight: 130kg
  • Wash pump size: 0.58kW
  • Wash pump capacity: 380 Ltrs/min
  • Wash tank heating: 4.05kW
  • Wash tank capacity: 28L
  • Wash tank temperature: 55 °C
  • Rinse boiler capacity: 7.5L (DUO) / 12L (DUOWS)
  • Rinse boiler temperature: 82°C
  • Rinse water consumption at 2 bar: 3 Ltrs

Hydraulic Specifications

  • Water supply connection: G3/4″ (3/4″Bsp)
  • Required water pressure : 2-4 bar
  • Required water flow rate: 11L/min
  • Required Water Flow Rate with integral water softener: 4 L/min

Electrical Specifications

  • Operating voltage – Standard: 380-415AC/50/3N
  • Operating voltage – Optional: 220-240AC/50/1N
  • Amps required – 3 Phase: 40 Degree Celsius
  • Water fed: 10 Degree Celsius
  • Rinse Boiler Heating
  • Everyday Use – P500A-12 (380-415AC/50/3N): 6 kW
  • Everyday Use – P500A-30 (220-240AC/50/1N): 6 kW
  • Intermediate Use – P500A-16 (380-415AC/50/3N): 8.64 kW
  • Intensive Use – P500A-22 (380-415AC/50/3N): 12 kW

Total Connected Load

  • Everyday Use – P500A-12 (380-415AC/50/3N): 6.68 kW
  • Everyday Use – P500A-30 (220-240AC/50/1N): 6.68 kW
  • Intermediate Use – P500A-16 (380-415AC/50/3N): 9.32 kW
  • Intensive Use – P500A-22 380-415AC/50/3N: 12.68 kW

Guarantee

LIMITED 2-YEAR WARRANTY

Exclusions to warranty include:

  • Breakdown attendance due to an obstruction in wash and/or drain pump.
  • Incorrect filling of detergent/rinse aid reservoirs (cross-contamination).
  • Scale related issues, caused by incorrect regeneration of water softener.
  • Willful damage to the exterior of the machine.
  • Fluid being spilled unto electrics of machine.
  • External damage to supply/waste fittings caused by insufficient care being taken when cleaning below the machine.
  • Inadequate cleaning of the wash/rinse arms.
  • Parts that have been removed by the operator then lost or not returned to the machine correctly.
  • Callouts due to pre-shower unit and related parts, or faults not related to, or external to the machine.
  • Stainless steel tabling, sinks, taps and associated services.
  • Baskets and racks.
  • Inadequate cleaning of the interior wash chamber leading to component blockage/failure.
  • Services to the machine.
  • Water condition water treatment hoses and taps.
  • Relocation of the machine.
  • Dosing equipment which is supplied by third party chemicals.
  • Repairs carried out by unauthorized Winterhalter personnel.
  • Where repairs are taken, and no fault is found.
